7  Basemaps

Getting an appropriate basemap is an essential first step in the map making process. The examples shown in this gallery show some of the variety you can get by using fairly simple R code.

Later, you’ll see that the specification of a basemap is made easier by using some functions. Here, we’re only focused on the general appearance of the basemaps. These examples will help you decide what type of basemap will best suit your project.

7.1 Setup & Defaults

ImportantSetup Information

Each section has its own setup and default information. This allows each section to be run independently. The duplication of code is a small price to be paid for the independence and clarity achieved by this repetition.

All use of Google maps requires the use of an API key. Getting this key is a one-time task. Store the key somewhere same and hidden from the outside.

Registering the Google Key needs to be done once each session.

## Libraries
library(readr)
library(ggmap)
library(ggplot2)
library(sitemaps)

## Initialize Google Map key; the key is stored in a system folder.
googleKey <- Sys.getenv("GGMAP_GOOGLE_API_KEY")
register_google(key = googleKey, account_type = "standard")

Some Required and Useful Code

It is essential to include the code to set the parameters (site_styles()) and the Google Map hide codes (site_google_hides()).

This code block also defines a simple theme that removes the geographic coordinates from the map borders, places a black line around the map, and suppresses a default legend.

## Read in all the parameters
column <- site_styles()
hide   <- site_google_hides()

#################################################################

## Define a theme that removes the axis labels and
## puts a border around the map. No legend.
simple_black_box <- theme_void() +
              theme(panel.border = element_rect(color = "black",
                                   fill=NA,
                                   size=2),
                    legend.position = "none")

7.2 Google Basemaps

The Google basemaps have annotations on top. There are ways to selectively limit the annotation. This capability is discussed later along with a few other features that make these maps more useful.

Map Type	Appearance
roadmap	Street map
terrain	Shaded relief map
satellite	Satellite image
hybrid	Satellite image and street map

Here are a few examples that show some of the types of base maps. Note that the theme (“simple_black_box”), defined earlier, is used to simplify these maps.

map2 <- get_map(location = "Island of Oahu, Hawaii, USA",
                zoom=10,
                source="google",
                maptype="roadmap")

ggmap(map2) + simple_black_box

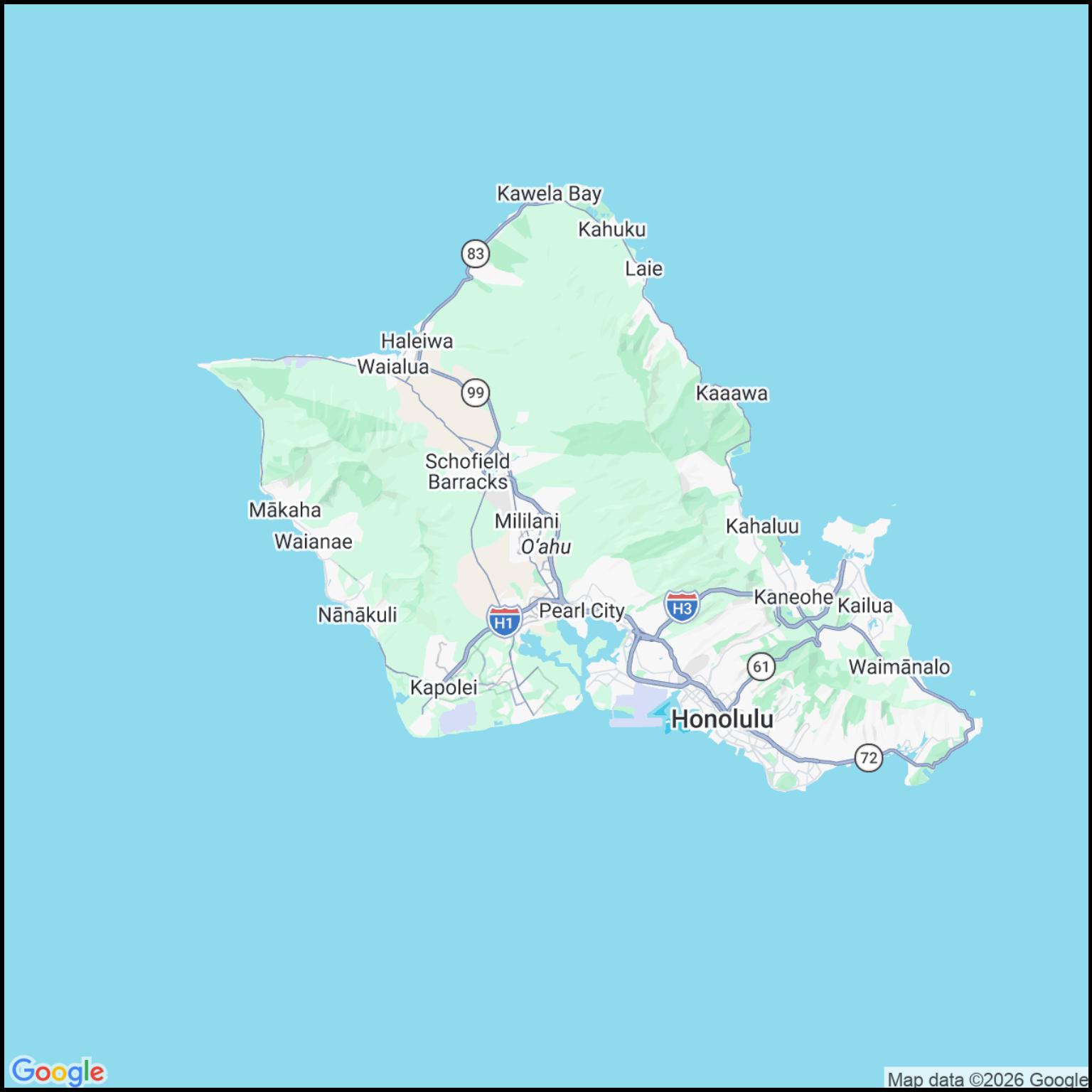

Figure 7.1: Oahu, Hawaii as a roadmap.

map3 <- get_map(location = "Island of Oahu, Hawaii, USA",
                zoom=10,
                source="google",
                maptype="terrain")

ggmap(map3) + simple_black_box

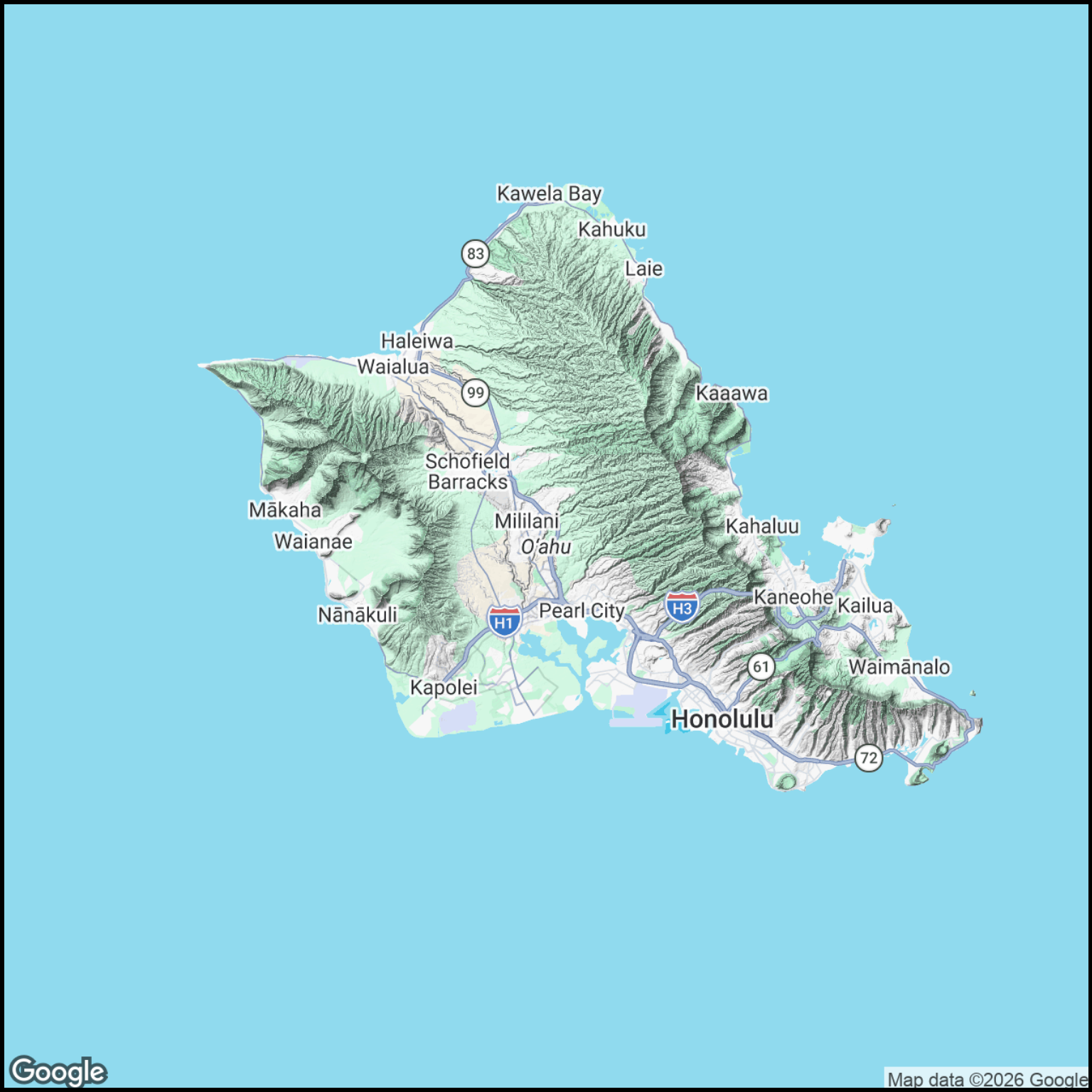

Figure 7.2: Oahu, Hawaii as a terrain map.

map5 <- get_map(location = "Island of Oahu, Hawaii, USA",
                zoom=10,
                source="google",
                maptype="satellite")

ggmap(map5) + simple_black_box

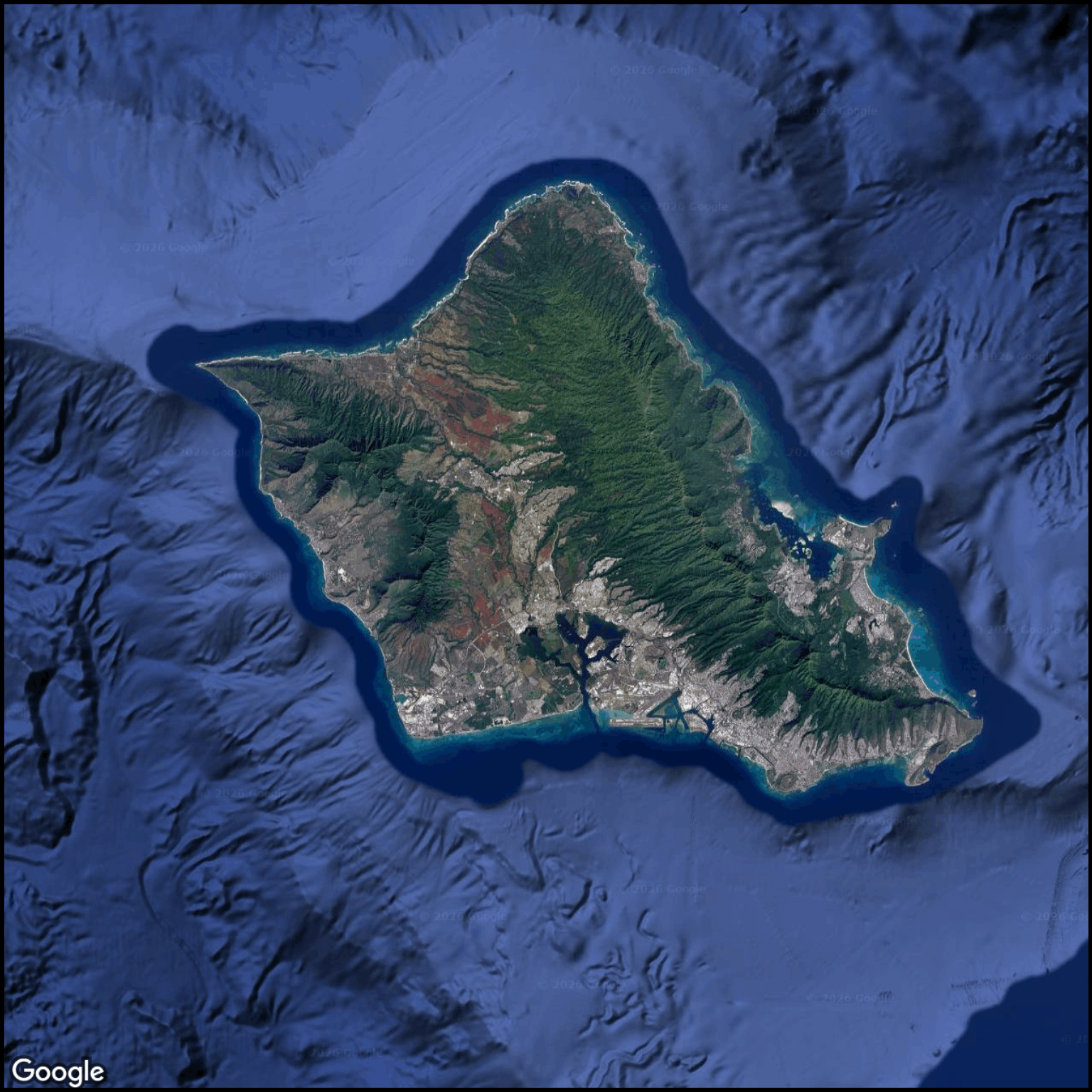

Figure 7.3: Oahu, Hawaii as a satellite map.

map1 <- get_map(location = "Island of Oahu, Hawaii, USA",
                zoom=10,
                source="google",
                maptype="hybrid")

ggmap(map1) + simple_black_box

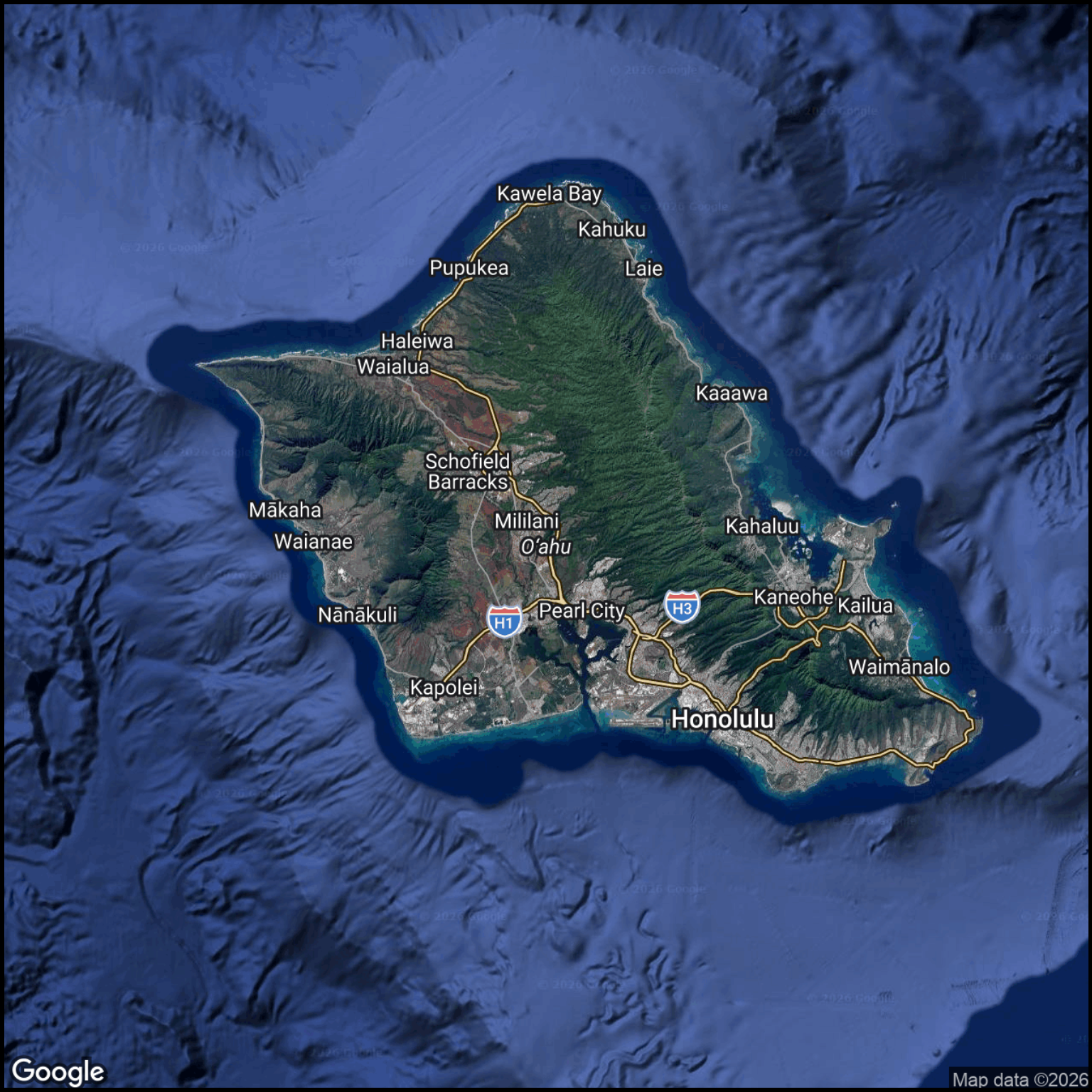

Figure 7.4: Oahu, Hawaii as a hybrid map.

7.3 Google Map Simplifications

It is possible to “hide” different layers of annotations on Google Maps. This example (Figure 7.5), which shows the hide$all parameter is just one possibility. See the Google Maps Simplified section for examples of alternative layer hiding.

map <- get_googlemap(center = "Island of Oahu, Hawaii, USA",
                zoom=10,
                source="google",
                maptype="terrain",
                style=hide$all)

ggmap(map) + simple_black_box

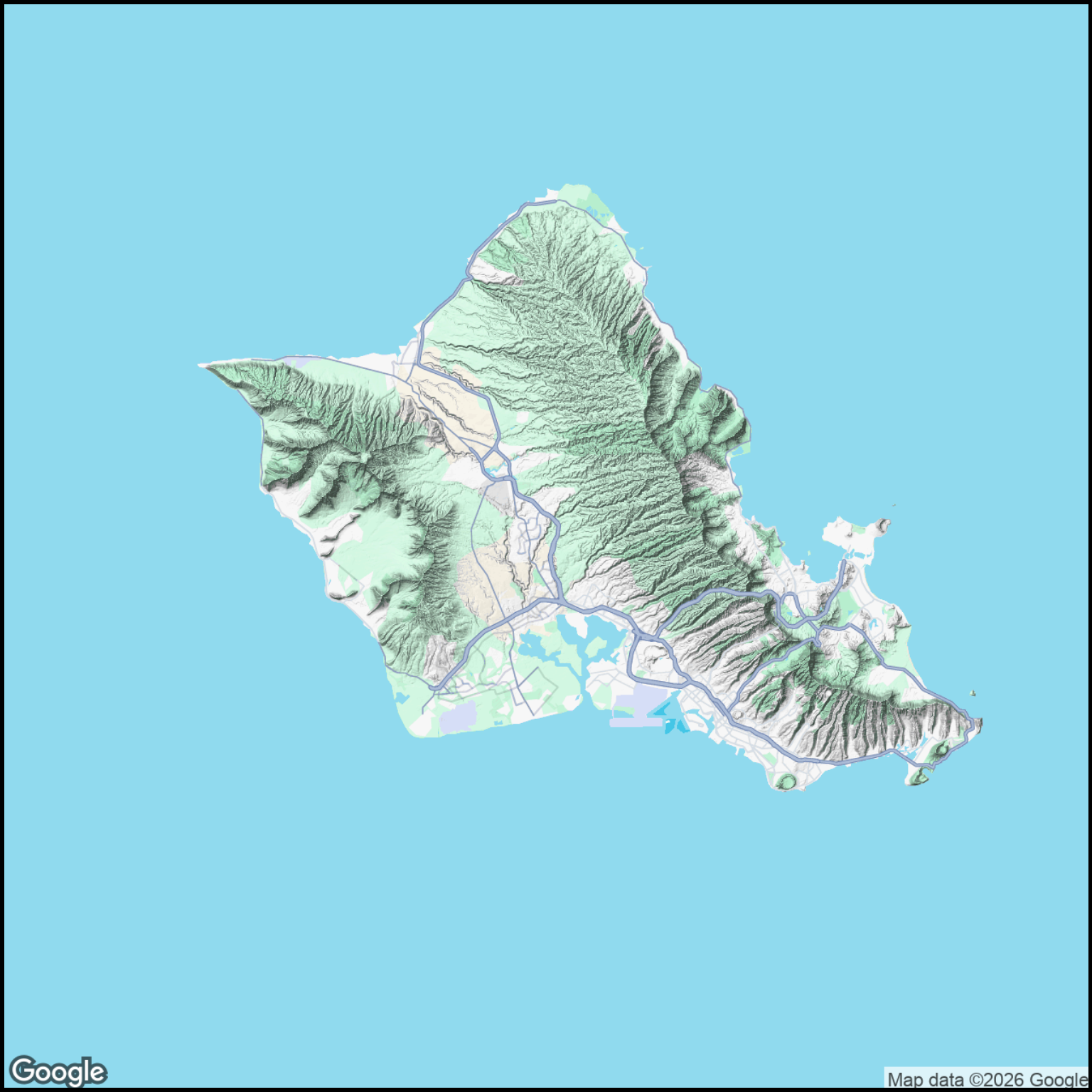

Figure 7.5: Oahu, Hawaii as a terrain map with layers hidden.

7.4 Scale Differences with Google Maps

The large property shown in this example (Figure 7.6) houses the Huntington Library, Art Gallery and Botanical Garden. Zooming out, you see the surrounding neighborhood (Figure 7.7) and, with even more zoom, the city is shown (Figure 7.8) next to the adjacent mountains. Finally (Figure 7.9) you see much of the Los Angeles basin. The original site is now too small to be seen.

map10 <- get_map(location = c(lon=-118.11418, lat=34.12839),
                zoom=16,
                source="google",
                maptype="terrain")

ggmap(map10) + simple_black_box

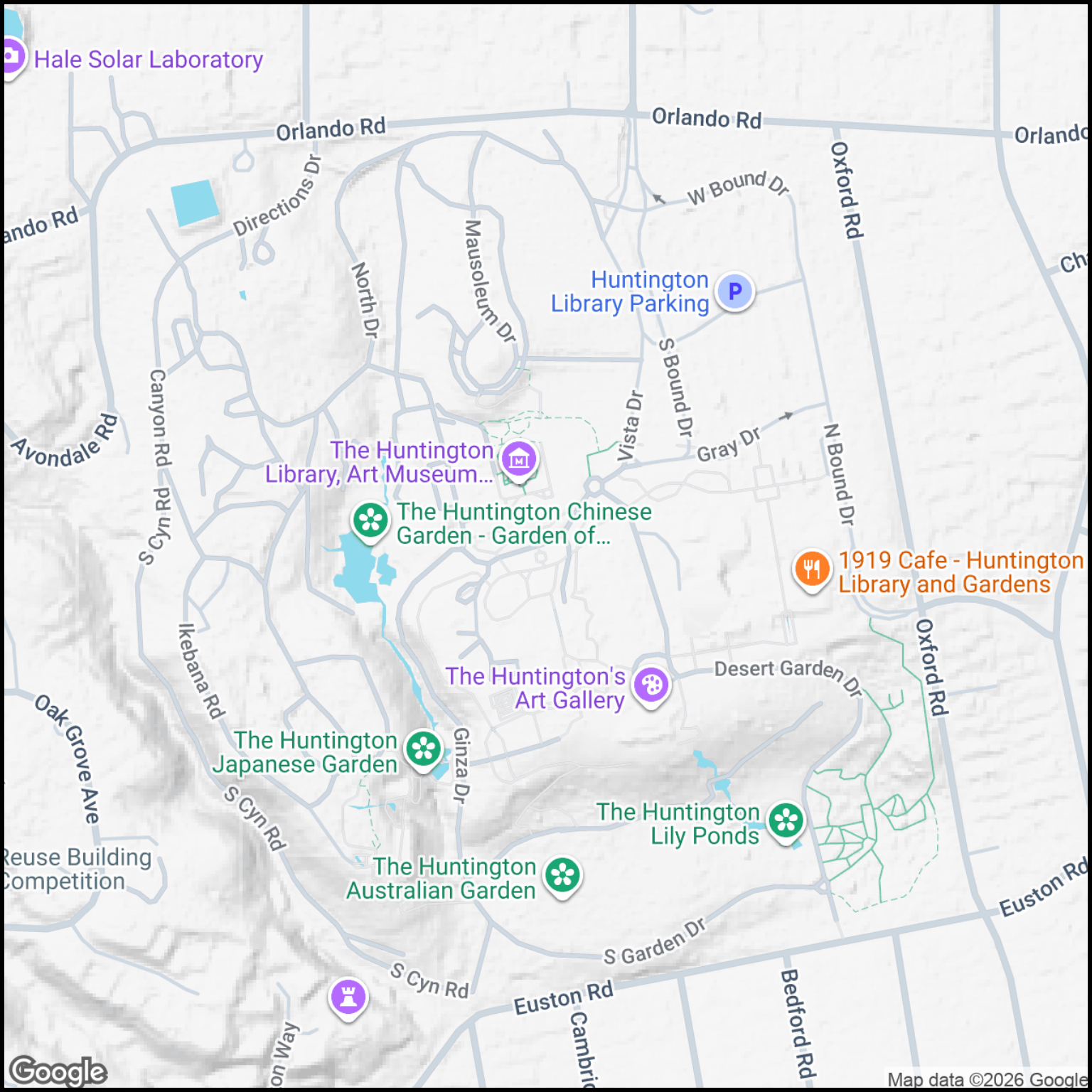

Figure 7.6: Southern California at zoom = 16 on a terrain map.

map11 <- get_map(location = c(lon=-118.11418, lat=34.12839),
                zoom=14,
                source="google",
                maptype="terrain")

ggmap(map11) + simple_black_box

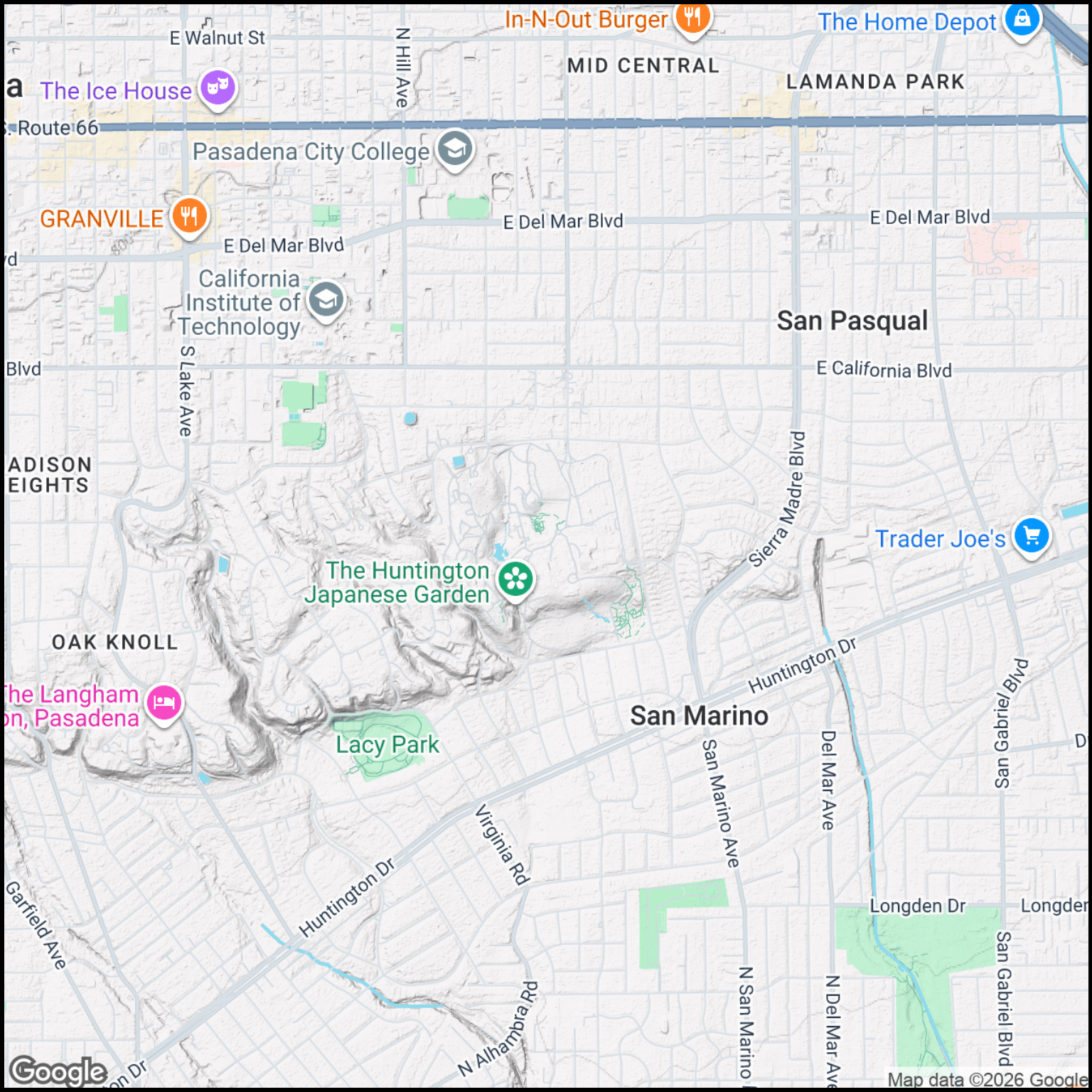

Figure 7.7: Southern California at zoom = 14 on a terrain map.

map12 <- get_map(location = c(lon=-118.11418, lat=34.12839),
                zoom=12,
                source="google",
                maptype="terrain")

ggmap(map12) + simple_black_box

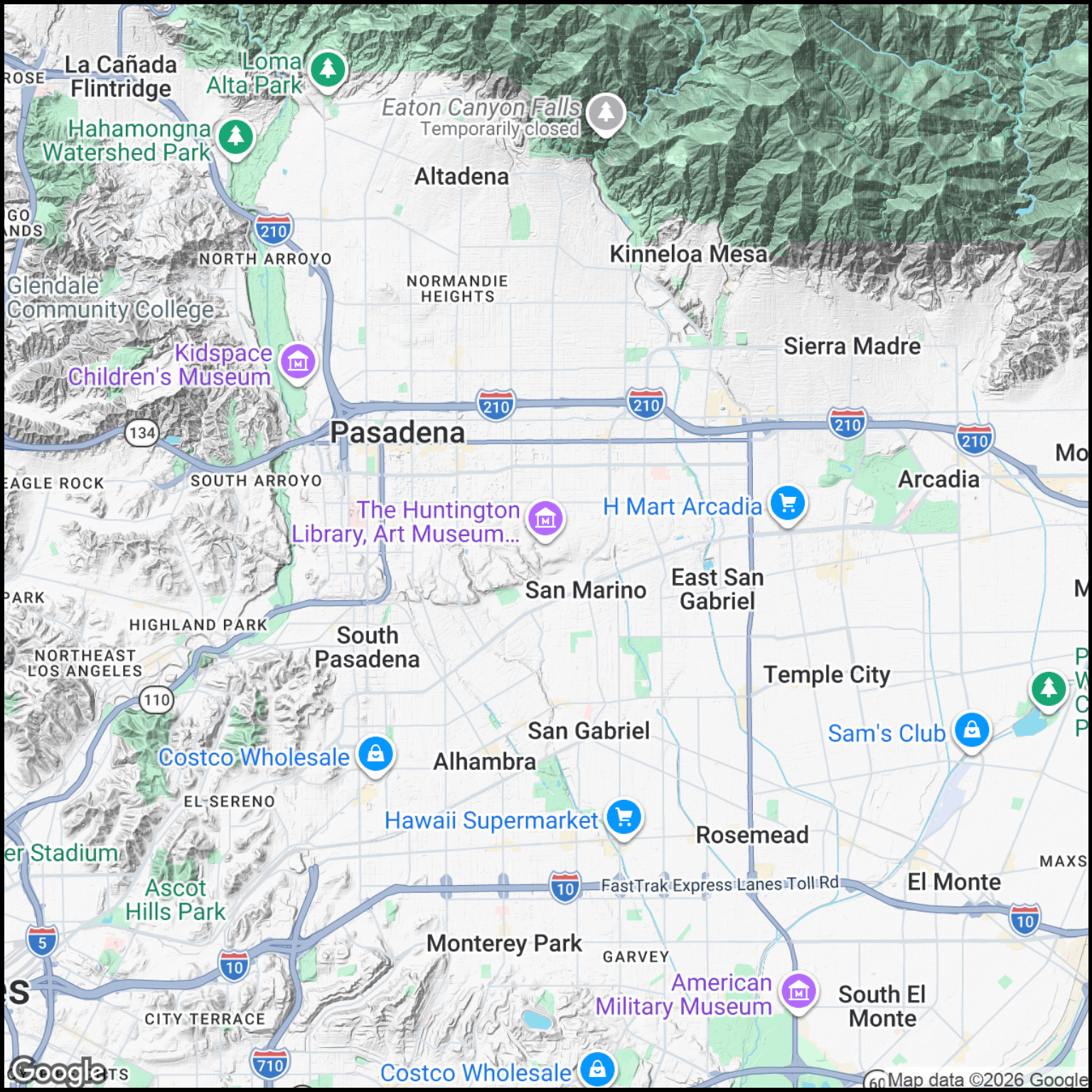

Figure 7.8: Southern California at zoom = 12 on a terrain map.

map13 <- get_map(location = c(lon=-118.11418, lat=34.12839),
                zoom=10,
                source="google",
                maptype="terrain")

ggmap(map13) + simple_black_box

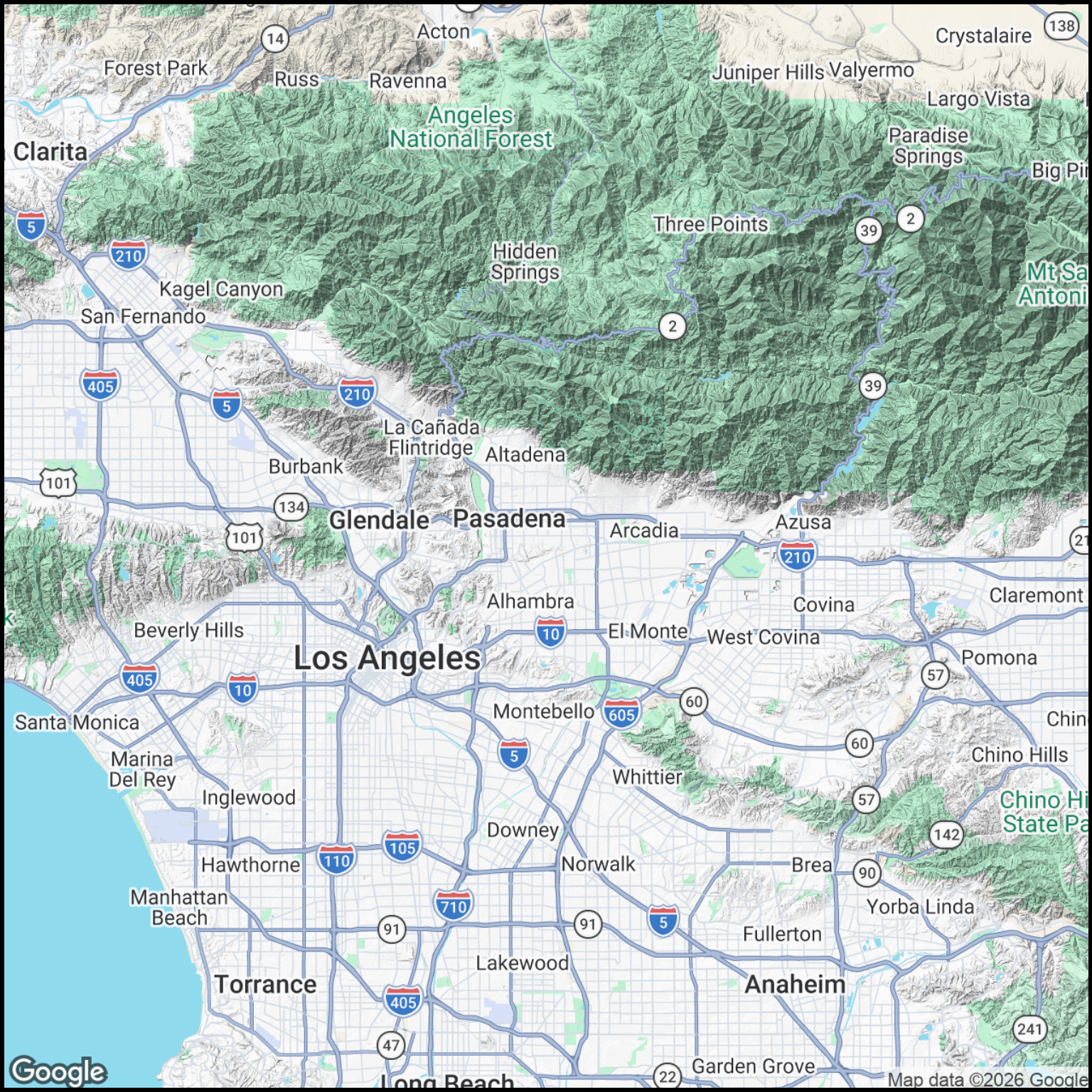

Figure 7.9: Southern California at zoom = 10 on a terrain map.
