3  Getting Started

Let’s jump in and make a map before we discuss the map-making process.

What is emphasized here is demonstrating how we can get an adequate map with as little difficulty as possible.

3.1 General Setup & Initialization

We need to load some R packages and initialize these as libraries. Table 3.1 lists the basic R packages that we’ll use. There are other packages that you’ll need later. For now, we’ll focus on this basic set.

The next step is to activate the Google Maps API key. This key provides access to Google Maps.

The key registration needs to be done only once for an RStudio session. This is why the process is kept in a separate R chunk so we don’t keep re-registering as we refine the maps.

Show the code chunk
## Basic Packages
library(readr)    ## Read in data
library(ggmap)    ## Show maps, handle Google key
library(dplyr)    ## Data wrangling
library(gt)       ## Tables
library(ggplot2)  ## Build maps
library(sitemaps) ## Functions to help build site maps

## Mermaid Package (using DiagrammeR)
library(DiagrammeR)

## Build a table of the key R packages
packages <- read_csv(col_names = TRUE, file =
  "package,  function
   readr,    Read in CSV data in a convenient format
   ggmap,    Help build basemaps, display maps and handle the Google Map key
   dplyr,    Data wrangling
   gt,       Table maker
   ggplot2,  The key to building layered maps
   tibble,   Helps with data frames
   sitemaps, A set of functions that use table data to build data-based maps")

## Print out the package information
gt(packages) %>%
  tab_style(style = cell_text(v_align = "top"),
            locations = cells_body())
## Initialize Google Map key; the key is stored in a system folder.
googleKey <- Sys.getenv("GGMAP_GOOGLE_API_KEY")
register_google(key = googleKey, account_type = "standard")
Table 3.1: Basic R packages for sitemaps.
package function
readr Read in CSV data in a convenient format
ggmap Help build basemaps, display maps and handle the Google Map key
dplyr Data wrangling
gt Table maker
ggplot2 The key to building layered maps
tibble Helps with data frames
sitemaps A set of functions that use table data to build data-based maps

There is also some setup code that needs to be loaded. This is another pretty much standard code block that you’ll need.

What you’re doing is initializing a lot of standard parameters that control details of the appearance of the maps.

Show the code chunk
## Use two functions from sitemaps to initialize parameters
column <- site_styles()
hide   <- site_google_hides()

## Establish a theme that improves the appearance of a map.
## This theme removes the axis labels and
## puts a border around the map. No legend.
simple_black_box <- theme_void() +
              theme(panel.border = element_rect(color = "black",
                                   fill=NA,
                                   size=2),
                    legend.position = "none")

It is always a good idea to test a package before going into it too deeply. That’s what we’ll do here.

Our test is a simple map problem: locate the benchmark monuments near downtown Honolulu. A benchmark is a carefully surveyed point. These are reference marks for other surveys. The monument consists of a metal plate on which you’ll find information about the location. The benchmark system also has on-line information that provides more details.

For us, this survey system is handy as the locations of the benchmarks can be copied from an on-line listing.

3.2 Step 1: Prepare the Data Table

The data for our map come as a set of comma-separated values (CSV). This is a handy format that is widely used. The read_csv function from the readr package makes the data into a data frame.

Our data frame has quite a bit of information. That’s expected as tables are often used to store relevant data for each of the observations. A table with a lot of data is good as this represents knowledge about each of the places that will be mapped.

Note that in the data in the code chunk looks a bit messy. That’s because the data were cut and pasted from the on-line file … there was no typing. Printing out the data (Table 3.2) show the values more neatly.

As noted before, there is a lot of data in the table. This is useful for the person using the benchmark data. Here, we’re focused on just three columns: Ref, Lat, and Lon. That’s enough to show how to make a basic map.

Having the proper column names is essential. In order to use the data in our data table, we need to make the following changes:

  • Ref needs to be made into text so that it will appear in a data-point label.

  • Lat and Lon need to be shifted to lower case.

We’ll make these two changes with the dplyr::rename function.

Show the code chunk
## Read in the data
benchmarks <- read_csv(col_names = TRUE, file =
    "Ref,Designation,Lat,Lon,Agency,Substrate,Alt-Name,MLLW,MHW
1, 161 2340 BM 8,    21.30519,-157.86397,USGS, Concrete bulkhead,B.M. ELV. 8.06 FEET,2.573,2.134
2, 161 2340 TIDAL 2, 21.30553,-157.85983,HGSD, Stone pilaster base,161 2340 TIDAL 2,5.185,4.746
3, 161 2340 TIDAL 11,21.30575,-157.86389,USCGS,Concrete foundation,NO 11 1925,1.836,1.397
4, 161 2340 TIDAL 12,21.30631,-157.86036,USCGS,Concrete floor,NO 12 1925,3.992,3.552
5, 161 2340 TIDAL 13,21.30569,-157.85792,USCGS,Concrete floor,NO 13 1925,6.064,5.625
6, 161 2340 TIDAL 14,21.30681,-157.85903,USCGS,Concrete balustrade,NO 14 1925,5.495,5.055
7, NO 20 1960,       21.30333,-157.86467,USCGS,Concrete pier,NO 20 1960,1.892,1.453
8, NO 21 1964,       21.30383,-157.86367,USCGS,Concrete bulkhead,NO 21 1964,2.293,1.853
9, GSL 2340 1987,    21.30392,-157.86289,NGS,  Concrete pier,GSL 2340 1987,1.872,1.433
10,2340 A 1983,      21.30458,-157.86342,NOS,  Stainless steel rod,2340 A 1983,1.962,1.522
11,2340 B 1983,      21.30670,-157.86700,NOS,  Concrete foundation,2340 B 1983,2.706,2.267
12,2340 C 1983,      21.30542,-157.86061,NOS,  Stainless steel rod,2340 C 1983,2.979,2.539
13,161 2340 GPS Bolt,21.30333,-157.86453,HSLC, Metal mast,161 2340 GPS Bolt,5.297,4.858")

## Show the data table
benchmarks %>%
  gt() %>%
  fmt_number(columns = c(Lat,Lon), decimals = 5) %>%
  tab_style(style = cell_text(v_align = "top"),
            locations = cells_body()) %>%
  tab_source_note(source_note = "Data: https://tidesandcurrents.noaa.gov/benchmarks.html?id=1612340")
## Substitute the column names & shift all to lowercase
benchmarks2 <- benchmarks %>%
  dplyr::rename(text = Ref) %>%
  dplyr::rename_with(tolower)
Table 3.2: Raw data for downtown Honolulu benchmarks.
Ref Designation Lat Lon Agency Substrate Alt-Name MLLW MHW
1 161 2340 BM 8 21.30519 −157.86397 USGS Concrete bulkhead B.M. ELV. 8.06 FEET 2.573 2.134
2 161 2340 TIDAL 2 21.30553 −157.85983 HGSD Stone pilaster base 161 2340 TIDAL 2 5.185 4.746
3 161 2340 TIDAL 11 21.30575 −157.86389 USCGS Concrete foundation NO 11 1925 1.836 1.397
4 161 2340 TIDAL 12 21.30631 −157.86036 USCGS Concrete floor NO 12 1925 3.992 3.552
5 161 2340 TIDAL 13 21.30569 −157.85792 USCGS Concrete floor NO 13 1925 6.064 5.625
6 161 2340 TIDAL 14 21.30681 −157.85903 USCGS Concrete balustrade NO 14 1925 5.495 5.055
7 NO 20 1960 21.30333 −157.86467 USCGS Concrete pier NO 20 1960 1.892 1.453
8 NO 21 1964 21.30383 −157.86367 USCGS Concrete bulkhead NO 21 1964 2.293 1.853
9 GSL 2340 1987 21.30392 −157.86289 NGS Concrete pier GSL 2340 1987 1.872 1.433
10 2340 A 1983 21.30458 −157.86342 NOS Stainless steel rod 2340 A 1983 1.962 1.522
11 2340 B 1983 21.30670 −157.86700 NOS Concrete foundation 2340 B 1983 2.706 2.267
12 2340 C 1983 21.30542 −157.86061 NOS Stainless steel rod 2340 C 1983 2.979 2.539
13 161 2340 GPS Bolt 21.30333 −157.86453 HSLC Metal mast 161 2340 GPS Bolt 5.297 4.858
Data: https://tidesandcurrents.noaa.gov/benchmarks.html?id=1612340

3.3 Step 2: Build the Basemap

We need a basemap that covers the area with the data locations. The site_google_basemap uses the coordinate information (lat, lon) in the data table to center the basemap and to scale it to the correct size.

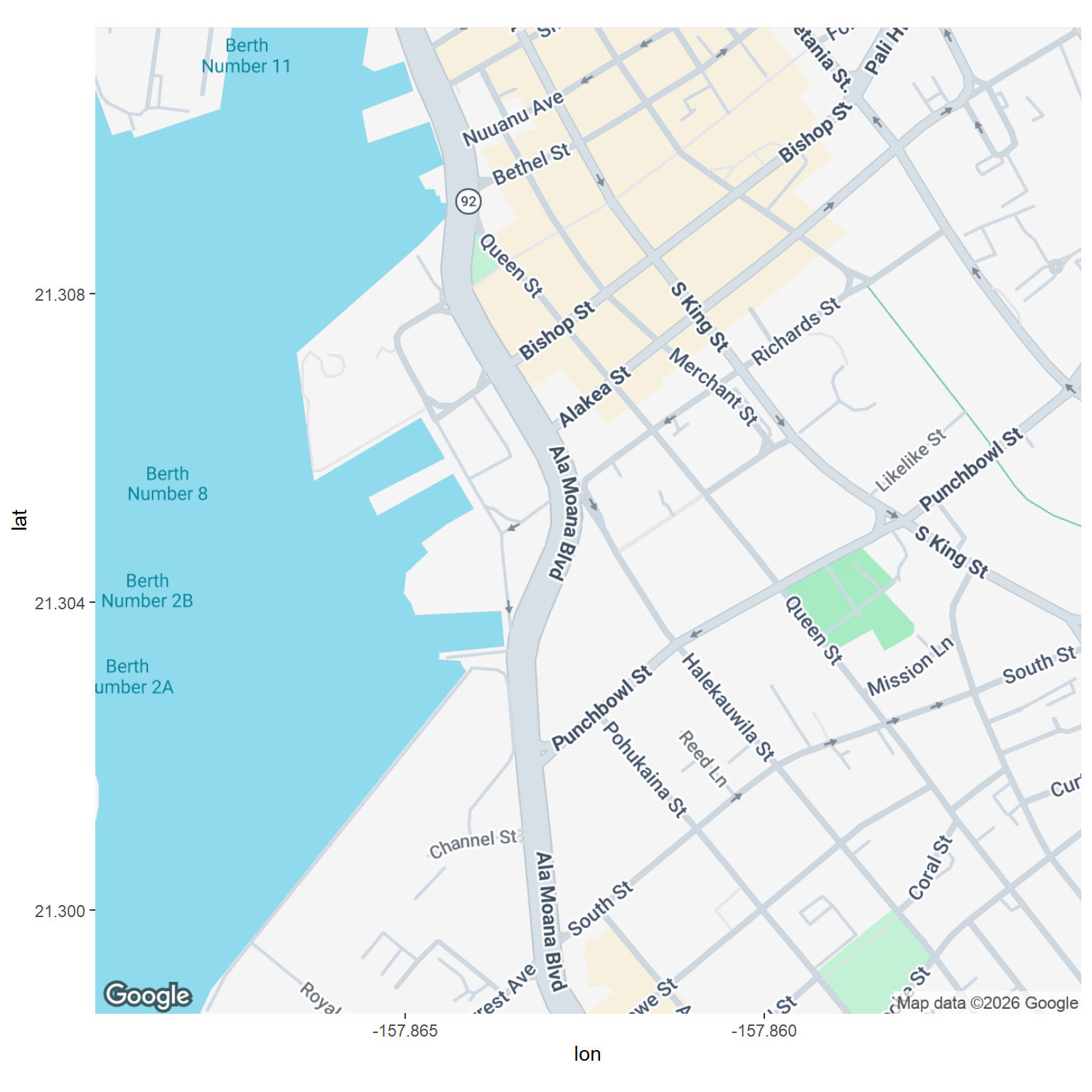

Getting the basemap is the next step. Usually, you don’t need to look at this map. But we’ll show it here as Figure 3.1.

Show the code chunk
## Adjust a style column value
column$margin <- 0.1

## Generate a basemap
basemap <- site_google_basemap(datatable = benchmarks2)

ggmap(basemap)
Figure 3.1: Downtown Honolulu basemap.

3.4 Step 3: Overlay Points and Labels

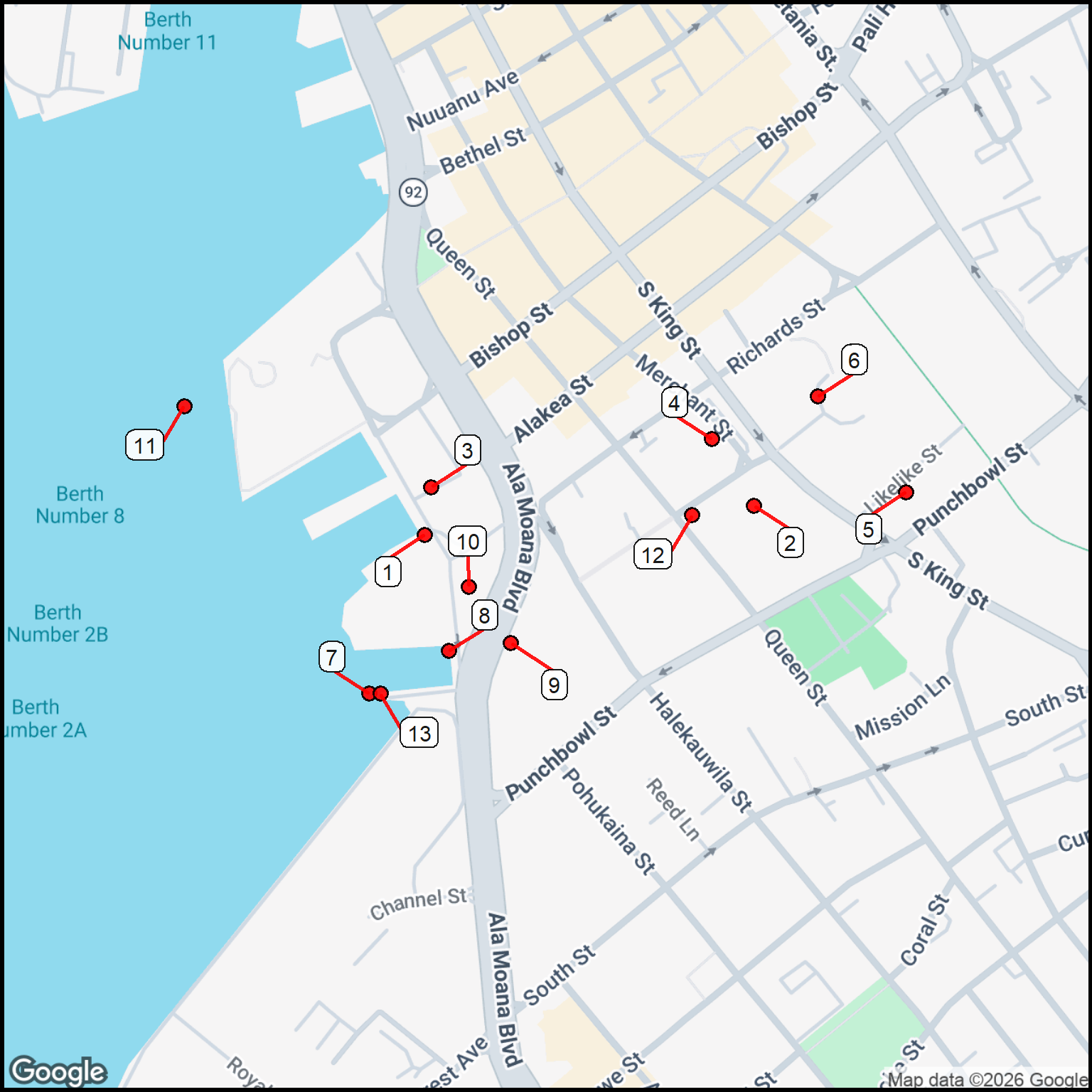

The final step is to place point markers at each of the benchmark locations. We also want to label each point with a label so we can tie the location back to the data table.

The result is shown in Figure 3.2.

Show the code chunk
## Show the map (with points & labels)
ggmap(basemap) +
  site_points(datatable = benchmarks2) +
  site_labels(datatable = benchmarks2) +
  simple_black_box
Figure 3.2: Benchmarks in Downtown Honolulu.

At this point, we have confidence that the system is producing maps using our data.

In terms of workflow, note that there was some data wrangling needed to get the column names correct. A style parameter also needed to be modified. But after that, getting a basemap and an overlay with points and labels was quite straightforward. The more complex part had to do with getting the data table configured. Producing the map from there was almost cut-and-paste.

But there was that one parameter change. That was important as it was a style modification. The sitemaps package comes with many default styles. Things like the color of the data points and the size of the labels. You’ll see in the other examples how to use these style modifiers to add information to the map and to make it better suit your needs.

3.5 In Summary

We’ve gone through a three-step process in creating a map from a data table (Figure 3.3). These are the steps that are used over and over in the examples.

The important point is that everything starts with a datatable that has specific column names (e.g., text for the label names, lon and lat for the geographic coordinates).

We’ll soon be adding enhancements to the maps, such as changing the color of the marker points. This will be a simple extension of the process we used here.

Show the code chunk
mermaid(diagram="
  graph LR

  A[datatable]
  B[basemap]
  C[map render]
  D(data: text, lon, lat)
  J(style columns)
  E(site_google_basemap)
  F(ggmap)
  G(site_points)
  H(site_labels)
  style A fill:#2e2,stroke:#000,stroke-width:4px
  style B fill:#2e2,stroke:#000,stroke-width:4px
  style C fill:#2e2,stroke:#000,stroke-width:4px
  subgraph
  A ==> E
  B ==> F
  D -.-> A
  E -.-> B
  J -.-> A
  F -.-> C
  G -.-> C
  H -.-> C
  A ==> G
  A ==> H
  end")
Figure 3.3: The three-step process of map creation.

3.6 Looking Ahead

Consider that the table gives you the details. The map shows not only the geographic locations, but you can also see relationships inherent in the data. Maps and tables fit together well, each bringing a complementary strength to the relationship.

Maps can be simple or complex. Manipulation of the symbolism features involves adding columns to the data table. Most of the effort is in getting the data in order. But you’ll also want to examine how map symbolism (e.g., point color, point outline, point size) can add interesting additional information to the map.

3.7 A Bit More About R Packages

There are quite a few R packages that are useful, sometimes essential, for the map-making process beyond those that are essential (Table 3.1). These supplemental packages are shown in Table 3.3.

These following packages will be highlighted in the descriptions of the sitemaps functions that require their use.

Show the code chunk
morelibs <- read_csv(col_names = TRUE, file =
  "Package, Use
   geosphere, Distance and direction calculations
   sp, Spatial point data structure conversion and processing
   parzer, Convert HMS to digital coordinates
   jsonlite, Process files using the JSON format
   httr, Allow API calls")

gt(morelibs)%>%
  tab_style(style = cell_text(v_align = "top"),
            locations = cells_body())
Table 3.3: Additional R packages used with sitemaps.
Package Use
geosphere Distance and direction calculations
sp Spatial point data structure conversion and processing
parzer Convert HMS to digital coordinates
jsonlite Process files using the JSON format
httr Allow API calls
